CABLE & CONNECTORS FOR SALE





CART INSTRUCTIONS:  Click on "Add to Cart" button for the item you want.  A PayPal shopping cart will appear.  Change quantity and update cart if you want more than one.  Click "Continue Shopping" to order other items.  When finished, check out through PayPal.  INTERNET EXPLORER users see special instructions at FAQ No.1.

click on picture to enlarge

Description

Details

Part Number

Price  $

Microphone Connector New Standard Amphenol 80MC2M Connector.  See MIC for more details. MIC1 CURRENTLY OUT OF STOCK

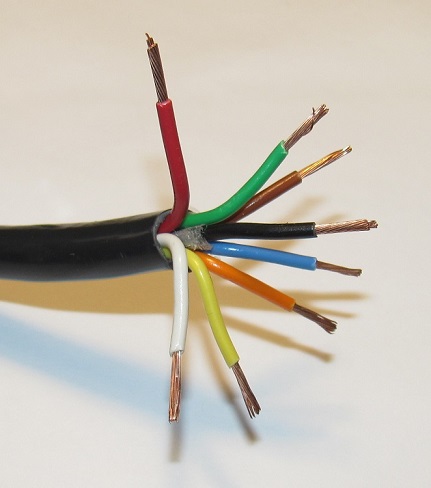

New Heavy Duty 8-conductor cable (no connectors) to go between the 11-pin connectors going into the radio and the power supply.  2 conductors #16 gauge and 6 conductors #18 gauge, just like the original Heathkit cable.  The red and black wires are the #16 gauge.  See WIRING for information on wiring to the connectors.

CABLE42 $9.00

CURRENTLY OUT OF STOCK


Same as above 42" cable but 60" in length.

CABLE60 $12.00

CURRENTLY OUT OF STOCK

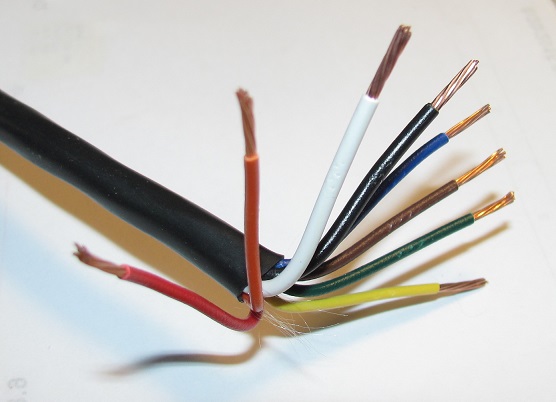

42" Lighter duty Power Supply Cable

New Lighter Duty 8-conductor cable (no connectors) to go between the 11-pin connectors going into the radio and the power supply.  2 conductors #16 gauge and 6 conductors #18 gauge.  Similar to the above 42" cable but different color wires and slightly thinner outer insulation.  See WIRING for information on wiring to the connectors but colors may be different.

LTCABLE42

$7.00


New 11-Pin Female Connector

Brand new connector for the female end of the 11-pin power supply cable.

FEMCON

$9.00

CURRENTLY OUT OF STOCK

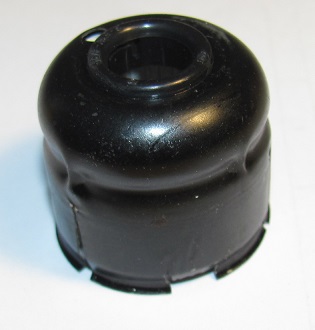

shell.jpg (29474 bytes) New Shell for above Connector Brand new metal shell for 11-pin connectors. SHELL CURRENTLY OUT OF STOCK

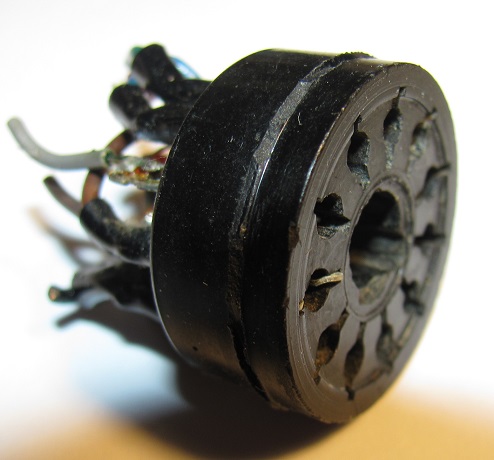

usedfem.jpg (61633 bytes) Used 11-Pin Female Connector See Econ Cable for various alternatives to making an economical power supply cable. USEDFEM $3.75

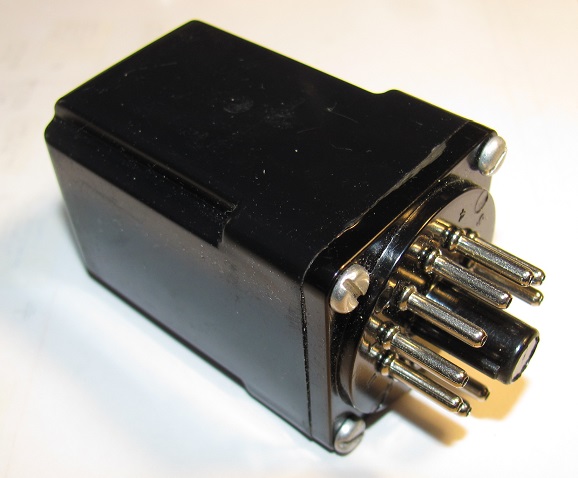

newcase.jpg (72979 bytes) New Relay Case with 11-Pin Male Connector Brand new alternative for an 11-pin male connector.  See Econ Cable for details.   MALERELAY $5.75

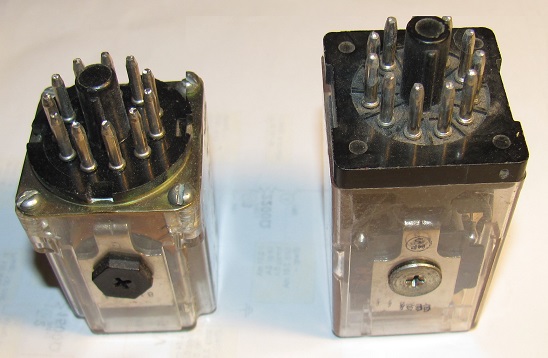

relays.jpg (72030 bytes) One Used 11-pin Relay  One used 11-pin relay (various sizes and shapes).  See Econ Cable for details.   USEDRELAY $2.00

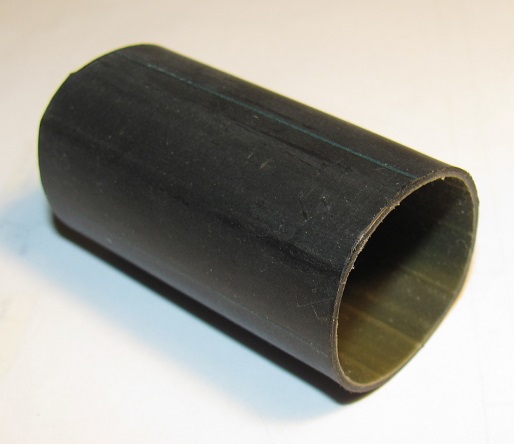

heatshrink.jpg (47846 bytes) Heat Shrink Sleeve  2" Heat shrink sleeve to form shell around used female connector.  See Econ Cable for details.   HEATSHRINK $1.00














Contents copyright 2007-15 OldHeathkitParts -    K8GNZ
