RESISTORS, CAPACITORS & RELAYS FOR SALE





CART INSTRUCTIONS:  Click on "Add to Cart" button for the item you want.  A PayPal shopping cart will appear.  Change quantity and update cart if you want more than one.  Click "Continue Shopping" to order other items.  When finished, check out through PayPal.  INTERNET EXPLORER users see special instructions at FAQ No.1.



click on picture to enlarge

Description

Details

Part Number

Price  $

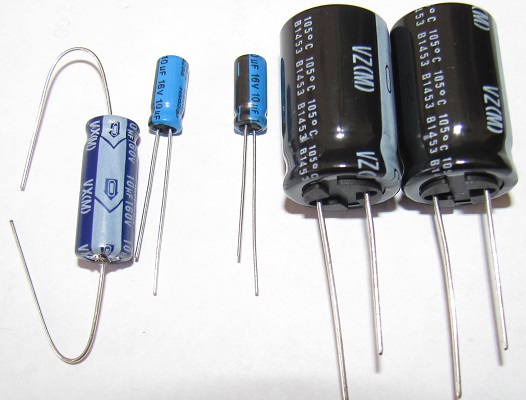

caps.jpg (71026 bytes) 5 New Electrolytic Capacitors to replace old ones New replacements for all 5 electrolytic capacitors in the 5-band transceivers.  Replaces part numbers 25-147, 25-135 and 25-115.  Same or better ratings and mostly smaller physical size.  Lead spacing may be a little different than original radial capacitors.   Capacitors supplied may differ in looks from those in picture.  C5 $5.00
relayr.JPG (9080 bytes) 1 New relay for SB-100, 101 & 102 One new relay for the SB series of 5-band transceivers.  See New Relays for details. R1 $13.75
relayr.JPG (9080 bytes)  relayr.JPG (9080 bytes) 2 New relays for SB-100, 101 & 102 Two new closely matched relays for the SB series of 5-band transceivers.  See New Relays for details. R2 $25.50

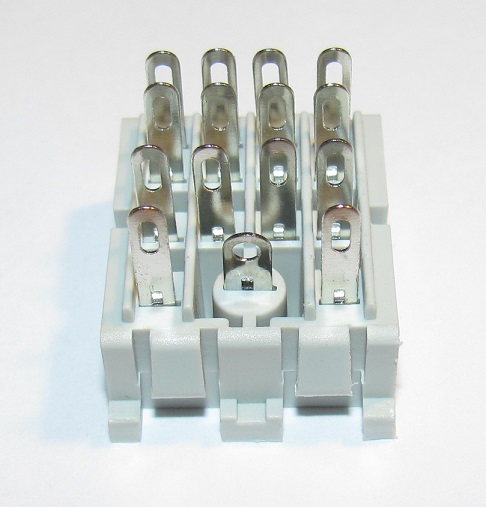

New Relay Socket

New socket which snaps right into the relay socket opening in the chassis of the SB transceivers.  See Sockets for details.

SOC

$2.75

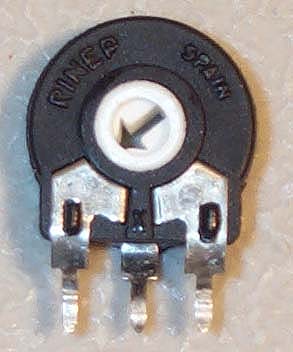

New 200-ohm Null Potentiometer to replace Heathkit Part No. 10-147.  See Null for details.

NULL

Out of Stock

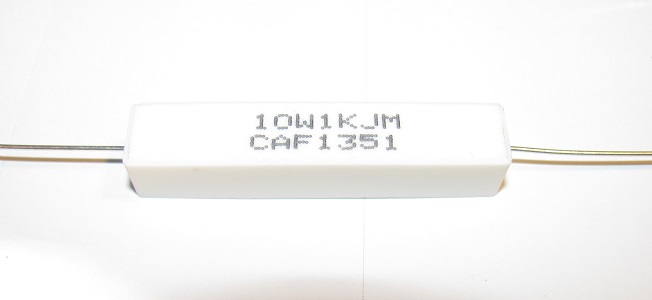

1K, 10 Watt Resistor

New 1K, 10 watt resistor to replace the 7 watt Heathkit Part No. 3-15-7 resistor on the audio board.  Slightly longer than original but there is room for it on the board.

1K-10W

$2.75

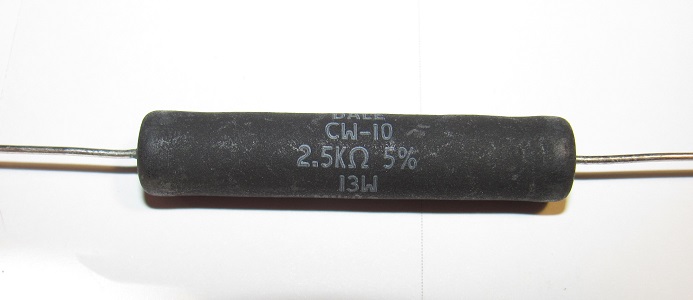

2.5K, 10 Watt Resistor

New 2.5K, 10 watt resistor to replace the 7 watt Heathkit Part No. 3-16-7 resistor on the audio board.  Slightly longer than original but there is room for it on the board.

2.5K-10W

Out of Stock

150uFcap.jpg (59195 bytes) 150uF, 450 V Capacitor New Capacitor not known to be a direct replacement in any Heathkit but because of it's small size may be suitable for replacing some 125uF power supply and linear capacitors using some ingenuity.  Has snap in type leads which can be soldered to.  Length = 1.85", diameter = .8".

150uF-450V

Out of Stock
