NEW FEET THAT ARE A CLOSE  MATCH TO ORIGINAL FEET FOR VARIOUS RIGS

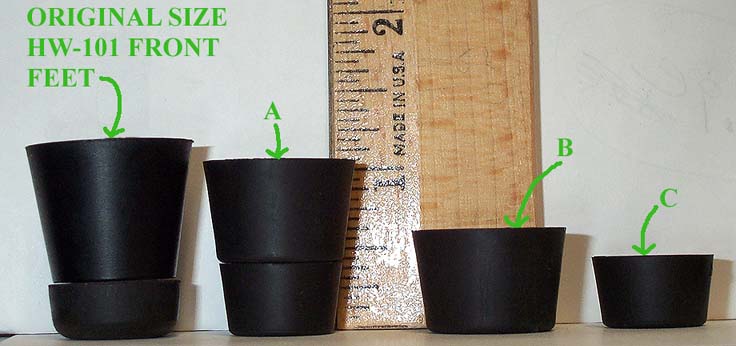

New feet are now available for the HW-101, SB-101, etc., and these feet possibly fit other Heathkits and other brands of equipment. The picture below illustrates these feet.



The foot on the left side is an original HW-101 front foot (includes the plastic spacer and the rubber foot).  Total height is about 1 3/16".  The new replacement foot (A) is a combination of feet (B) and (C), and is slightly shorter than the original, at about 1 1/16".  Type (B) will take a #8 screw or smaller, and type (C) will take a #6 screw or smaller.  Of course, the type (A) foot will also take a #6 screw, which is what the HW-101 uses.  (#6 is smaller than a #8 screw)

So, see the Hardware page to order individual feet.  Order (A) for new front feet replacements, order (C) for new back feet replacements, or order four (B) or (C) feet for a "level" look.  For a full set with hardware order from the Kits page.
